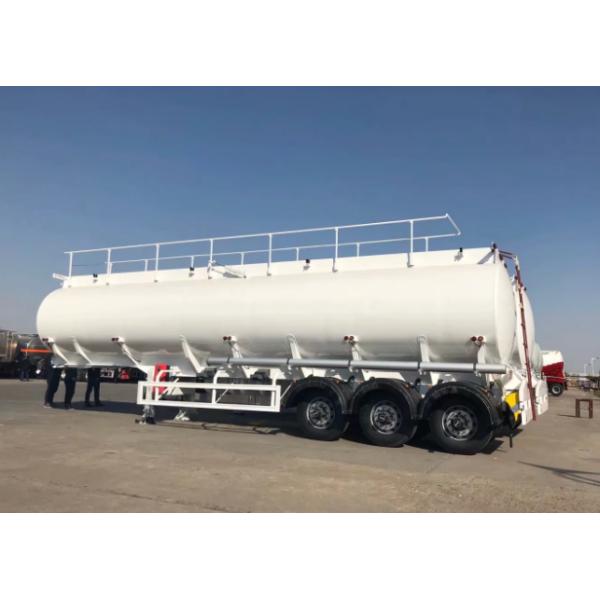

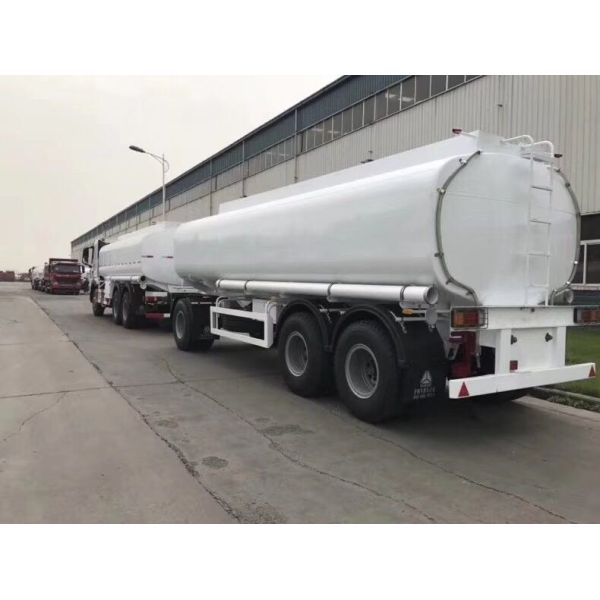

3 Axles 12 Wheels White Color Heavy Duty Semi Trailers 45000L Oil Tank Trailer

  • 1
  • 2
  • 3

Brand Name : Sinotruk Heavy Duty Semi Trailers

Model Number : cimc Heavy Duty Semi Trailers

Certification : iso ccc Semi Trailers

Place of Origin : china

MOQ : 1unit

Payment Terms : L/C, T/T

Supply Ability : 2000units/year

Delivery Time : 20days

Packaging Details : nude

axle : fuwa brand Semi Trailers

tire : triangle brand

material : Q235

toolbox : 1pcs

capacity : 45000L

condition : new

Contact Now

3 Axles 12 Wheels White Color Heavy Duty Semi Trailers 45000L Oil Tank Trailer
Product Description

Main Dimension Heavy Duty Semi Trailers
Tank Body
shape Optional (Round or Suare)
dimension 12000mm*2490mm*3990mm(Exact size depends on the final design)
Tare weight About 8000KGS-12800KGS
Total Volume(m3) 25m3-60m3
Tsnker Body Meterial 5mm or 6mm/Q235carbon steelof Aluminum alloy
End Plate 5mm or 6mm/Q235carbon steel of Aluminum alloy
Manhole Cover Carbon steel or Aluminum alloy API manhole cover, 500mm
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inch
Compartments Optional
Discharging Pipe 4" rubber hose ,2 pcs, 6m/each inch
Cat Walk With (Commen model or special design)
Chassis
Main Beam Weldding Design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle 2 or 3 axles, 12T/13T/16,BPW/FUWA/HUAJING brand
Landing Gear JOST(D200T) or CHINA BRAND 28T
King pin Jost 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type/ Air Suspension
Leaf Spring 90(w)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12/without
Pneumatic Braking System WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber (TKL brand) 2 pieces of 45L air tanks
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
ABS Optional
Paiting Complete Chassis sand blasting to clean rust ,1coat of anticorrosive prime,2 coats of final paint
Accessories One standard tool box
Shipping Terms By Bulk Cargo ,RORO or 40HQ Containers

Related products: Fuel ,oil tank truck ,trailer ,mini trailer . Heavy Duty Semi Trailers
